PE Pallet box with Compartments and Lid.

Lid fixed with steel Hinges and Latch
Compartments made from Polypropylene Sheet and Stainless Steel Brackets
Bottom of the box is lined with a rubber mat.

Dimensions: 1200 x 800 x 840 ( high ) mm.
Weight = 85 Kg.

Easy to clean and Weather-resistant

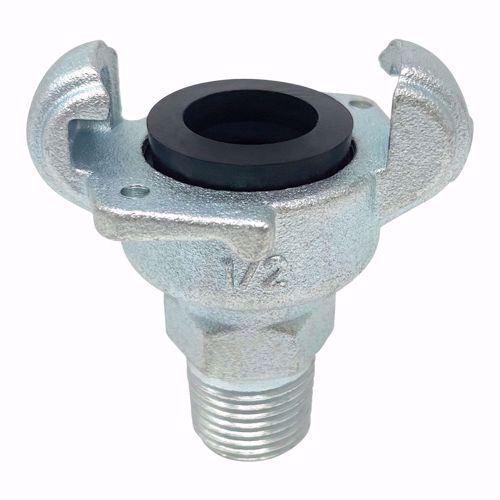

US-Style Crowfoot x 1/2" NPT Male
Maximum Cold working pressure 10 bar (150 PSI)
Anodized Steel

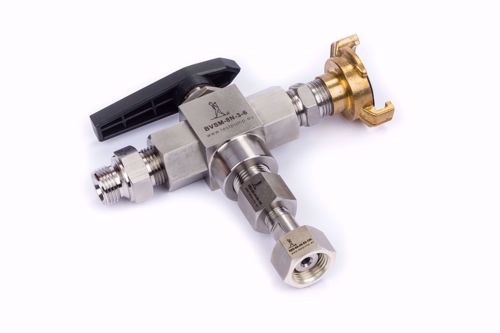

Vacuum / Fill Selector Manifold
Maximum Cold working pressure 115 PSI / 8 bar
Stainless Steel AISI 316 & Brass

Object connection : 1/2"BSP female swivel, 60 degree cone and o-ring
Vacuum Hose Connection : 1/2"BSP male, 60 degree cone
Water Supply Connection : GEKA

The Vacuum / Fill Selector Manifold has a 3-way Ball Valve as a Selector Valve to connect your Test Object with the Vaccum Pump, by switching the Selector Valve to the Vaccum Connection and when vacuum is reached you can switch the Selector Valve to your Water Supply Connection to fill your Test Object.

Consists of:
- 1x BVSM-8N-3-6 - 1/2" NPT 3-Way Ball Valve - female
- 1x RED-8N-4N-SS-15K - Reducer 1/2" NPT male x 1/4" NPT female
- 1x RED-8G-4N-SS-10K - Adapter 1/2" BSP female with 60 degree cone and o-ring x 1/4" NPT Male
- 1x VN-8N-8G-SS-15K - Adapter 1/2" NPT male x 1/2" BSP male, 60 degree cone
- 1x - Double Nipple 1/2"BSP Male
- 1x - GEKA x 1/2" BSP Female

Recorder Felt Pen
Strip with 5 pieces
Colour: Violet

Wrench Tool - Pressure Relief Valve - High Pressure

For the first serie Relief Valves, with batch number : SR-2103P09324,
you should need this wrench tool to able to change the seal
